vfio-user client in QEMU 10.1

The recent release of QEMU 10.1 now comes with its very own vfio-user client. You can try this out yourself relatively easily - please give it a go!¹

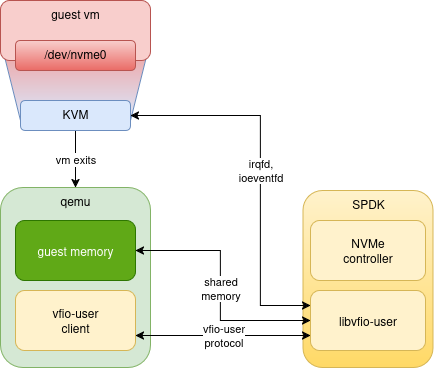

vfio-user is a framework that allows implementing PCI devices in userspace. Clients (such as QEMU) talk the vfio-user protocol over a UNIX socket to a device server; it looks something like this:

To implement a virtual device for a guest VM, there are generally two parts required: “frontend” driver code in the guest VM, and a “backend” device implementation.

The driver is usually - but by no means always - implemented in the guest OS kernel, and can be the same driver real hardware uses (such as a SATA controller), or something special for a virtualized platform (such as virtio-blk).

The job of the backend device implementation is to emulate the device in various ways: respond to register accesses, handle mappings, inject interrupts, and so on.

An alternative to virtual devices are so-called “passthrough” devices, which provide a thin virtualization layer on top of a real physical device, such as an SR-IOV Virtual Function from a physical NIC. For PCI devices, these are typically handled via the VFIO framework.

Other backend implementations can live in all sorts of different places: the host kernel, the emulator process, a hardware device, and so on.

For various reasons, we might want a userspace software device implementation, but not as part of the VMM process (such as QEMU) itself.

The rationale

For virtio-based devices, such “out of process device emulation” is usually done via vhost-user. This allows a device implementation to exist in a separate process, shuttling the necessary messages, file descriptors, and shared mappings between QEMU and the server.

However, this protocol is specific to virtio devices such as virtio-net and so on. What if we wanted a more generic device implementation framework? This is what vfio-user is for.

It is explicitly modelled on the vfio interface used for communication between QEMU and the Linux kernel vfio driver, but it has no kernel component: it’s all done in userspace. One way to think of vfio-user is that it smushes vhost-user and vfio together.

In the diagram above, we would expect much of the device setup and management to happen via vfio-user messages on the UNIX socket connecting the client to the server SPDK process: this part of the system is often referred to as the “control plane”. Once a device is set up, it is ready to handle I/O requests - the “data plane”. For performance reasons, this is often done via sharing device memory with the VM, and/or guest memory with the device. Both vhost-user and vfio-user support this kind of sharing, by passing file descriptors to mmap() across the UNIX socket.

libvfio-user

While it’s entirely possible to implement a vfio-user server from scratch, we have implemented a C library to make this easier: this handles the basics of implementing a typical PCI device, allowing device implementers to focus on the specifics of the emulation.

SPDK

At Nutanix, one of the main reasons we were interested in building all this was to implement virtual storage using the NVMe protocol. To do this we make use of SPDK. SPDK’s NVMe support was originally designed for use in a storage server context (NVMe over Fabrics). As it happens, there are lots of similarities between such a server, and how an NVMe PCI controller needs to work internally.

By re-using this nvmf subsystem in SPDK, alongside libvfio-user, we can emulate a high-performance virtualized NVMe controller for use by a VM. From the guest VM’s operating system, it looks just like a “real” NVMe card, but on the host, it’s using the vfio-user protocol along with memory sharing, ioeventfds, irqfds, etc. to talk to an SPDK server.

The Credits

While I was responsible for getting QEMU’s vfio-user client upstreamed, I was by no means the only person involved. My series was heavily based upon previous work by Oracle by John Johnson and others, and the original work on vfio-user in general was done by Thanos Makatos, Swapnil Ingle, and several others. And big thanks to Cédric Le Goater for all the reviews and help getting the series merged.

Further Work

While the current implementation is working well in general, there’s an awful lot more we could be doing. The client side has enough implemented to cover our immediate needs, but undoubtedly there are other implementations that need extensions. The libvfio-user issues tracker captures a lot of the generic protocol work as well some library-specific issues. In terms of virtual NVMe itself, we have lots of ideas for how to improve the SPDK implementation, across performance, correctness, and functionality.

There is an awful lot more I could talk about here about how this all works “under the hood”; perhaps I will find time to write some more blog posts…
